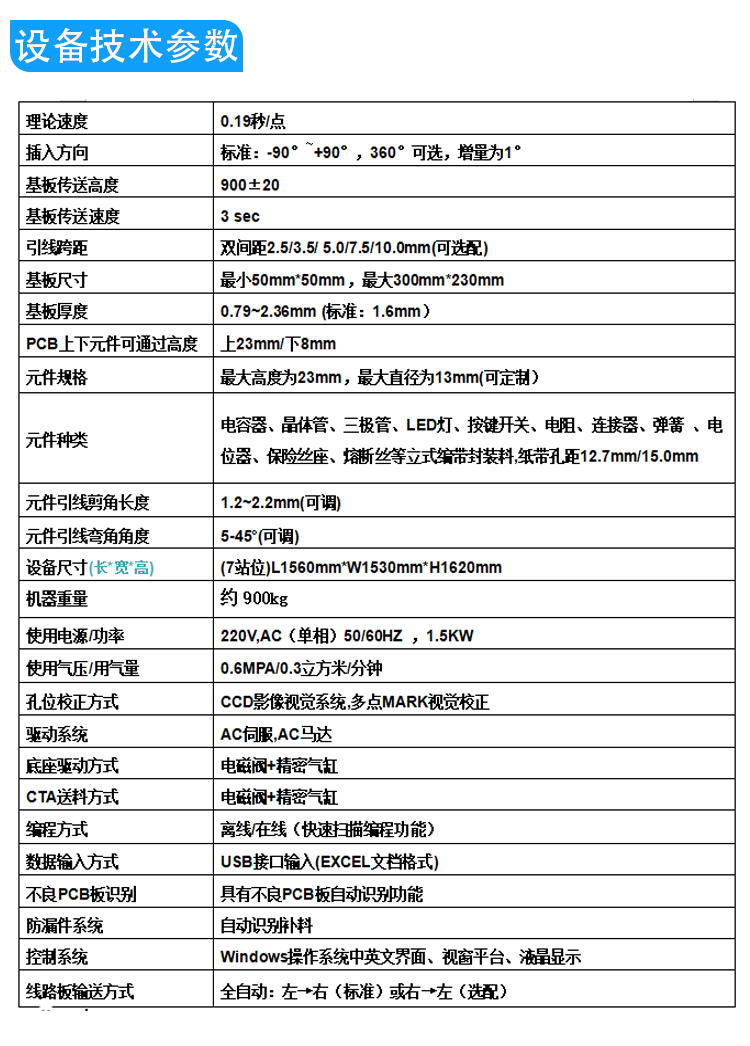

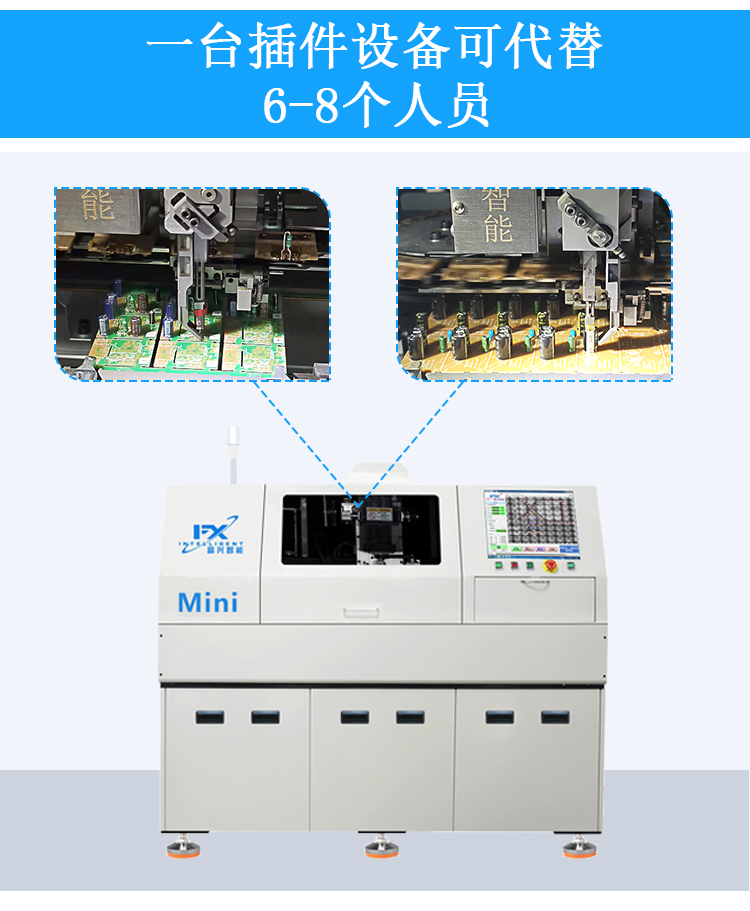

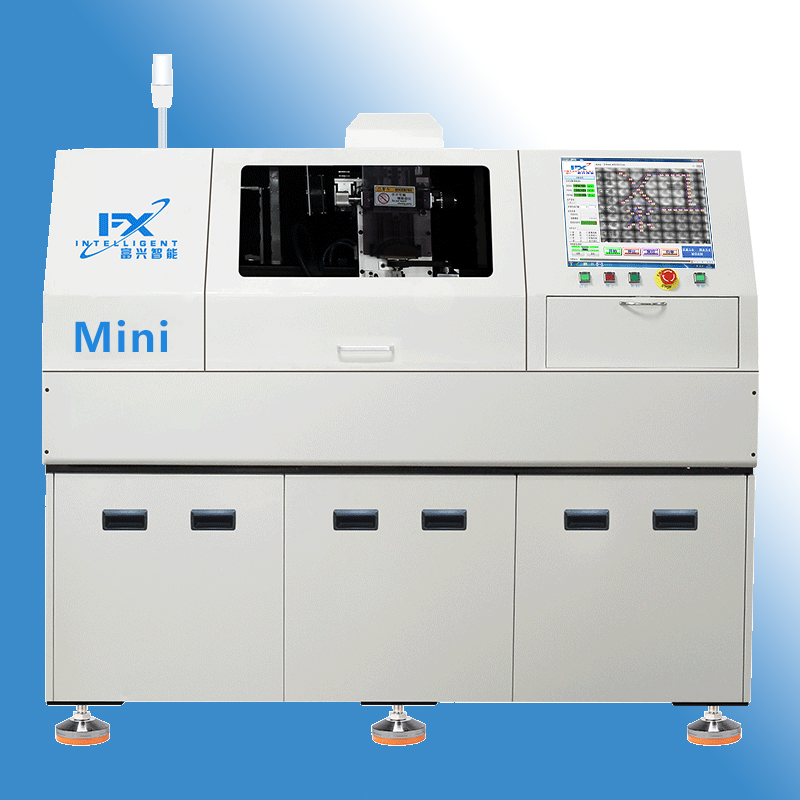

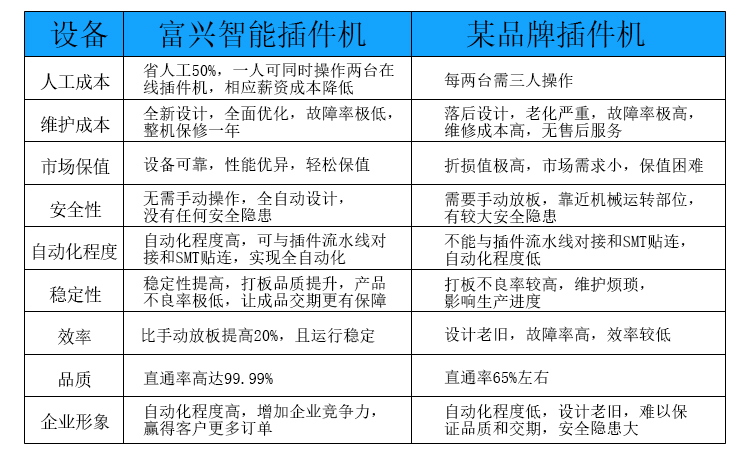

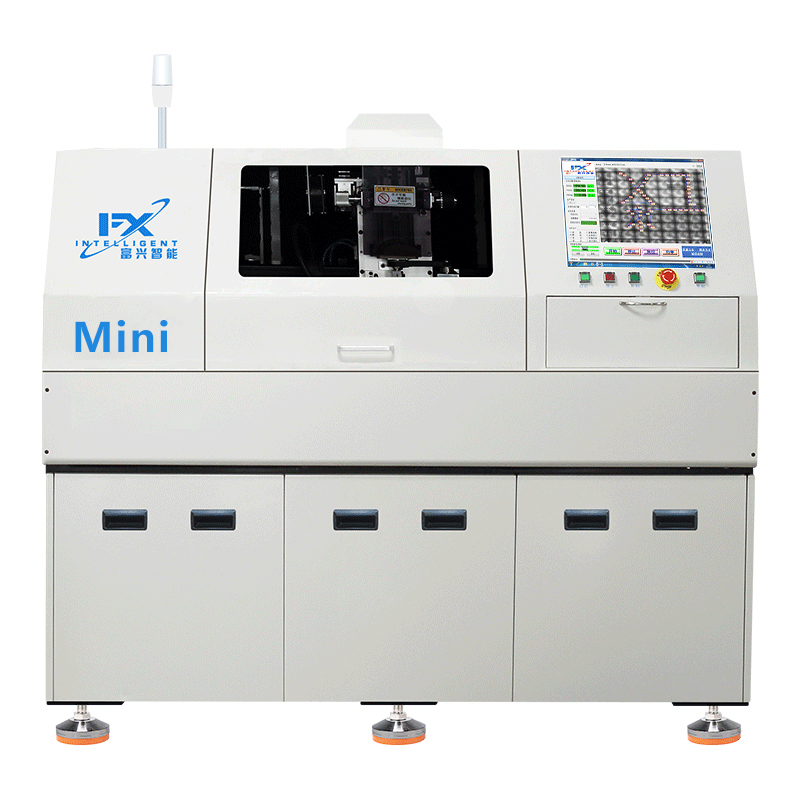

理论速度

Theoretical speed

0.19秒/点  0.19 seconds/point

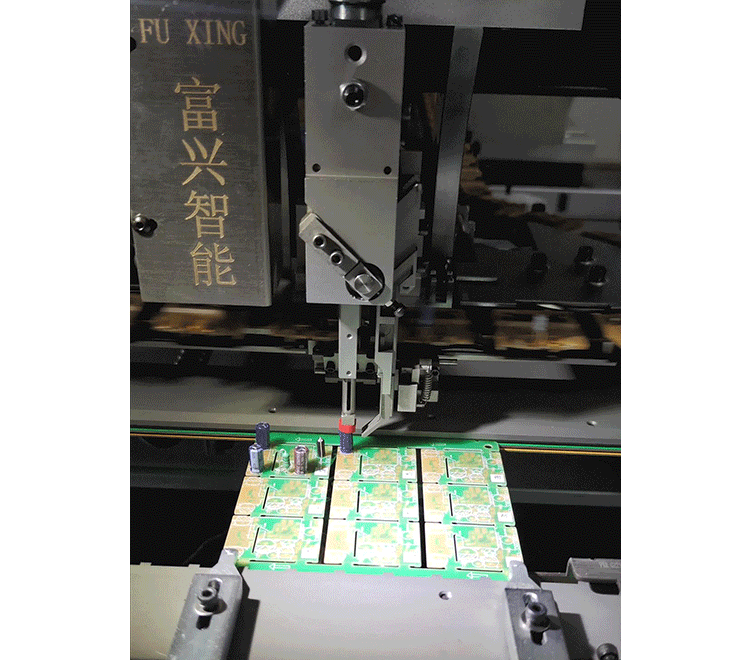

插入方向

Insertion angle

标准：-90°~+90°，360°可选，增量为1°

Standard -90 °~+90 °, 360 ° optional, high-density plug-in mode, with increments of 1;

基板传送高度

Substrate conveying height

900±20

基板传送速度

Substrate transfer speed

3 sec

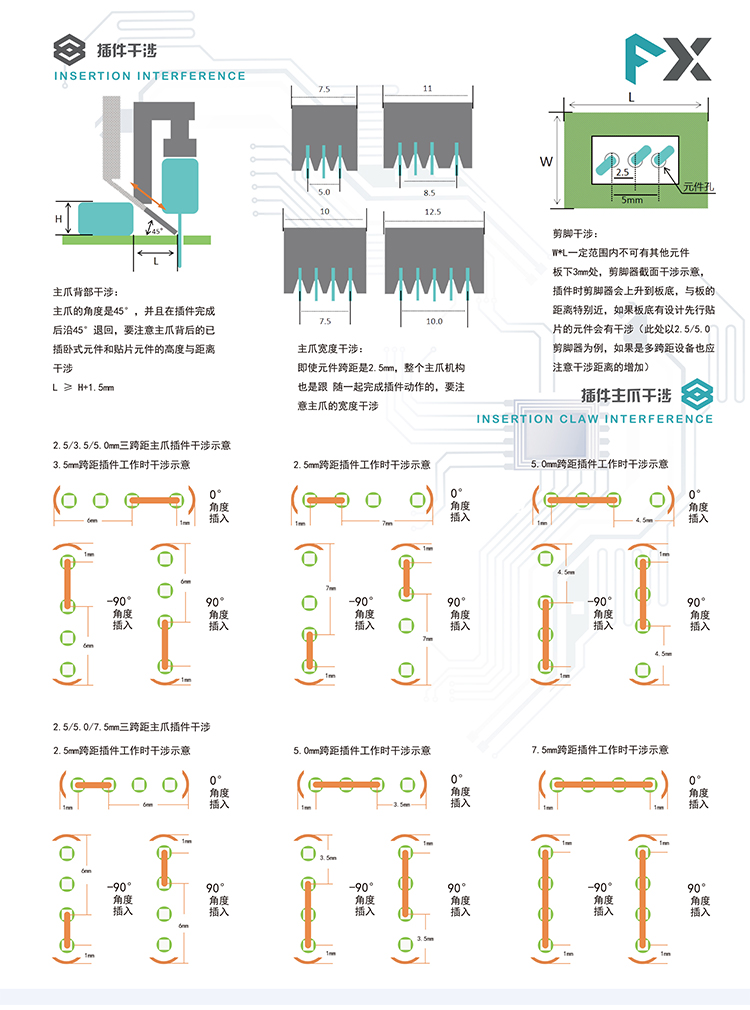

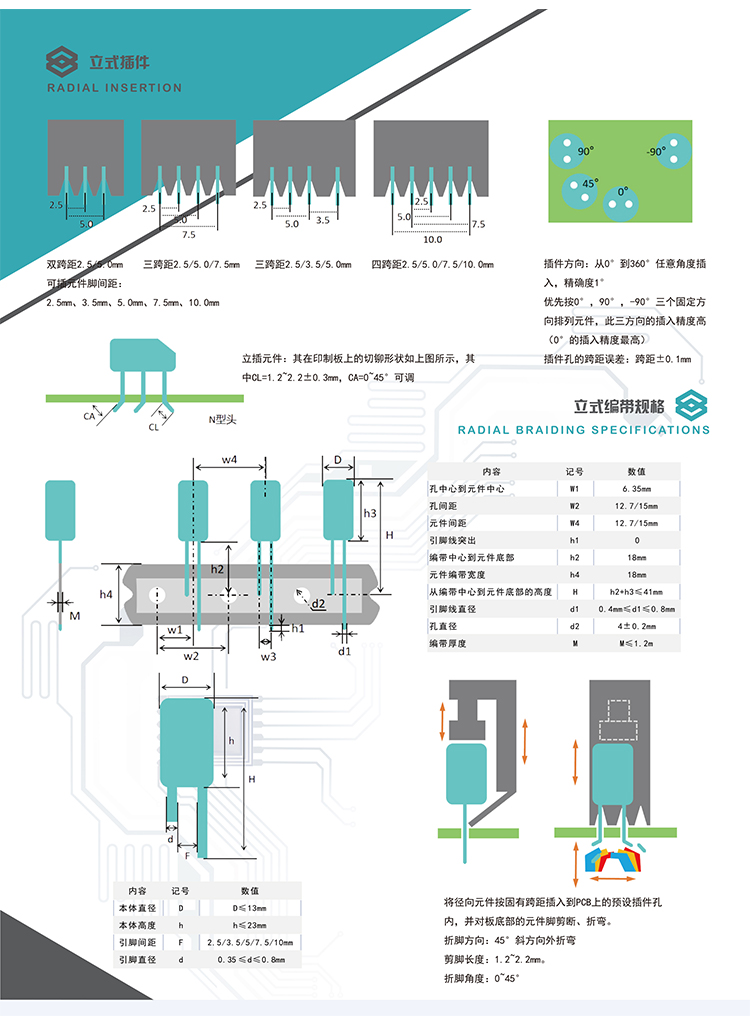

引线跨距

Lead span

双间距2.5/3.5/ 5.0/7.5/10.0mm(可选配)

Double spacing 2.5/3.5/ 5.0/7.5/10.0mm optional

基板尺寸

 PCB size

最小50mm*50mm，最大280*260mm

min. 50 mm * 50 mm, max. 280*260mm

基板厚度

PCB thickness

0.79~2.36mm (标准：1.6mm）
0.79-2.36mm(Standard: 1.6mm)

PCB上下元件可

通过高度

PCB upper and lower components can pass through height

上23mm/下8mm

23mm above/8mm below

元件规格

Components specifications

最大高度为23mm，最大直径为13mm(可定制）

Maximum height is 23mm, maximum diameter is 13mm (customizable)

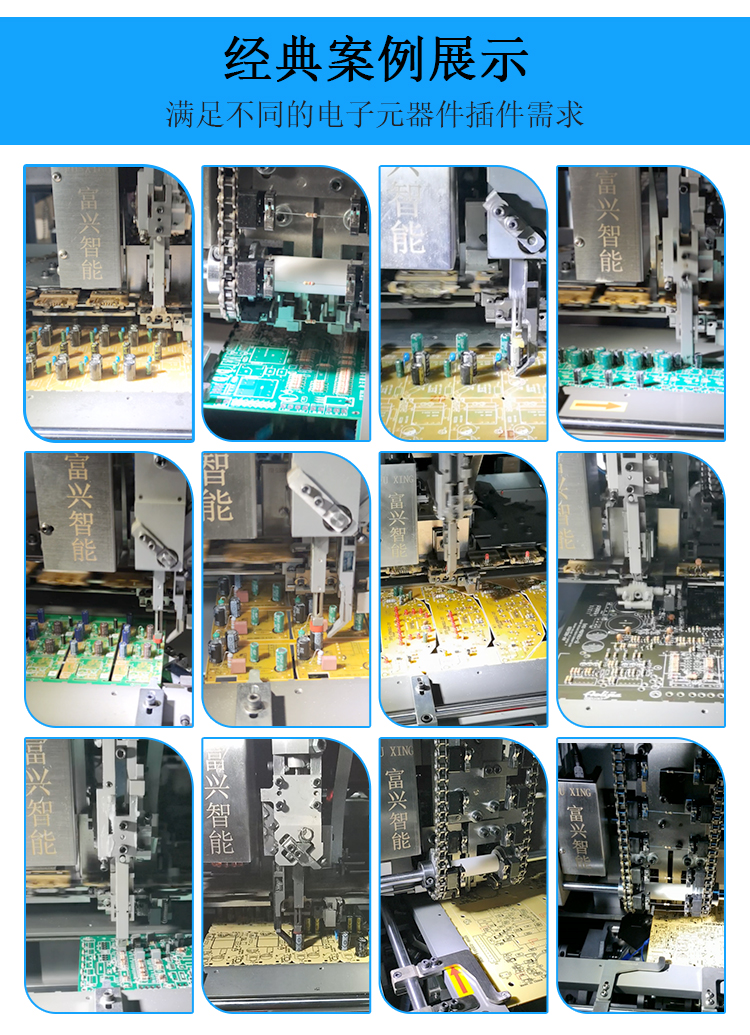

元件种类

Components style

电容器、晶体管、三极管、LED灯、按键开关、电阻、连接器、弹簧 、电位器、保险丝座、熔断丝等立式编带封装料,纸带孔距12.7mm/15.0mm

Vertical tape packaging materials such as capacitors, transistors, transistors, transistors, LED lights, key switches, resistors, connectors, springs, potentiometers, fuse holders, fuse links, etc., with a paper tape hole spacing of 12.7mm/15.0mm

元件引线剪角长度

Cut&Clinch length

1.2~2.2mm(可调)    1.2~2.2mm adjustable

元件引线弯角角度

Clinch angle

5-45°(可调)   5~45°adjustable

设备尺寸(长*宽*高)

Equipment size (length * width * height)

(7站位)L1560mm*W1530mm*H1620mm

(7 stations) L1560mm * W1530mm * H1620mm

机器重量

Weight

约900kg   Approximately 900kg

使用电源/功率

Power requirement

220V,AC（单相）50/60HZ ，1.5KW

AC220V,single phase,50/60Hz,1.5kw

使用气压/用气量

Use air pressure/gas

0.6MPA/0.3立方米/分钟

0.6 MPA / 0.3 m³/ min

孔位校正方式

Hole position offset method

CCD影像视觉系统,多点MARK视觉校正

CCDImage visual systems, multi-point MARK visual correction.

驱动系统

Driving system

AC伺服,AC马达 AC servo, AC motors

底座驱动方式

Base drive mode

电磁阀+精密气缸

Imported solenoid valve+precision cylinder

CTA送料方式

CTA feeding method

电磁阀+精密气缸

Imported solenoid valve+precision cylinder

编程方式

Programming method

离线/在线（快速扫描编程功能）

Offline/Online (Quick Scan Programming Function)

数据输入方式

Data input methods

USB接口输入(EXCEL文档格式)

USB input (EXCEL document-format)

不良PCB板识别

Identification of defective PCB board

具有不良PCB板自动识别功能

Equipped with automatic recognition function for defective PCB boards

防漏件系统

Leak proof component system

自动识别补料

Automatic identification of replenishment materials

控制系统

 Control system

Windows操作系统中英文界面、视窗平台、液晶显示
Windows operating system, Chinese and English interface, Windows platform, LCD display

线路板输送方式

Circuit board transportation mode

全自动：左→右（标准）或右→左（选配）

Fully automatic: left right (standard) or right left (optional)
